Compare the principal technologies used to store, separate, denest, orient, inspect, pick, buffer and present components or packaging to automated equipment.
The correct platform is the one that can sustain the required accepted output while protecting the component, preserving the required orientation and integrating cleanly with the downstream cycle. Sample trials are used where part behaviour cannot be established confidently from drawings alone.
Choose a category to see how it works, where it fits and what technical information is needed for a credible assessment.

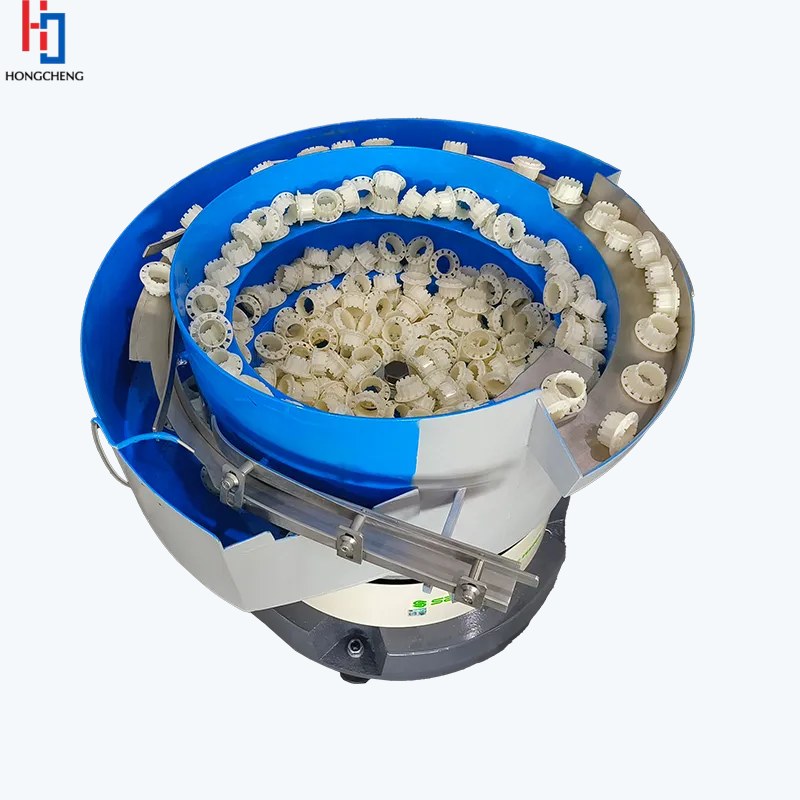

A vibratory bowl feeder uses controlled vibration and a purpose-designed track to move randomly loaded components around the bowl, reject incorrect orientations and discharge accepted parts in a defined presentation.
View system
A centrifugal feeder uses a rotating disc and guide geometry to accelerate, separate and orient suitable components. It is commonly considered where sustained rate, smooth flow and relatively low vibration are important.
View system
A step feeder uses reciprocating lifting plates to raise parts from a low bulk hopper. Parts are progressively presented to a linear track or orienting section, making the principle attractive for applications that need gentle movement, lower loading height or reduced bowl vibration.
View system
A flexible feeder uses controlled surface motion to separate and redistribute parts on a presentation plate. A vision system identifies pickable components and sends pose data to a robot, which places each part into the required orientation.
View system

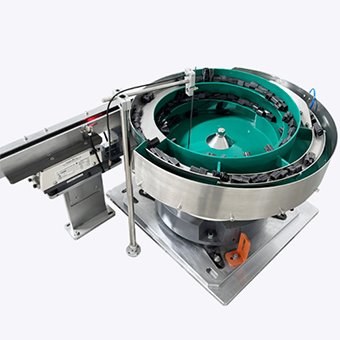

A linear feeder transfers parts along a defined track. It is typically used after a bowl, step or centrifugal feeder to create a buffer, maintain orientation and decouple the presentation device from the downstream machine cycle.
View system
A hopper or elevator stores a bulk batch of components and delivers them to the presentation feeder in controlled quantities. Proper replenishment prevents overloading, excessive part-on-part contact and unstable feeder performance.
View system
Vision sorting combines controlled presentation, lighting, cameras, image processing and rejection logic. It is most reliable when the inspection task, product presentation and reject handling are engineered as one system.
View system
A robotic feeding cell uses a robot to pick components from a known or camera-located position and place them into the required pose. It can combine flexible presentation with assembly, loading, inspection or packing in one safeguarded system.
View system
Automatic denesters separate nested trays, cups, pots, tubs and other rigid containers, then release one item at a time to a conveyor, filler, sealer or packing machine.
View system
Feeder, camera, robot and end tooling are combined to identify, pick, orient and place components into fixtures, packaging or assembly equipment.
View system

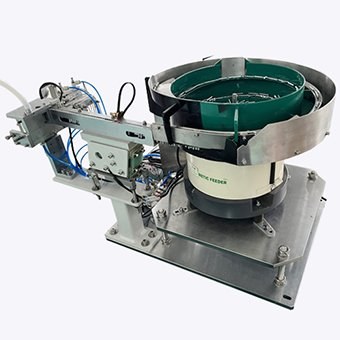

An escapement converts a queue of oriented components into a controlled presentation. It manages back pressure, pitch and timing so the downstream actuator, robot, insertion tool or pick head receives the correct part in a repeatable position.
View system
An acoustic enclosure surrounds the main noise source with mass, absorption and sealed interfaces. Effective designs consider part impact, structural transmission, ventilation, access and the feeder’s loading and discharge openings.
View system| Technology | Typical role | Strengths | Key checks |
|---|---|---|---|
| Vibratory bowl | Dedicated orientation of stable component families | Repeatability, compact integration, mature tooling approach | Part noise, cosmetic contact, limited format flexibility |
| Centrifugal | Fast continuous flow of suitable robust parts | Smooth rotary movement and high output potential | Part dynamics, recirculation and exit buffering |
| Step feeder | Long, heavier, tangled or noise-sensitive components | Low loading level and controlled lifting | Additional orientation section may be required |
| Flexible feeder | Frequent changeovers or difficult mechanical orientation | Software-led formats and vision-guided robot picking | Cycle balance, image visibility and robot cost |
| Linear feeder | Transfer and accumulation of already oriented parts | Preserves datum and creates a machine buffer | Back pressure, track tuning and end-of-line control |
| Vision sorter | Inspection, classification and reject decisions | Objective feature checking and data options | Presentation, lighting and validation of defect criteria |
| Denester | Separate nested trays, cups, pots or containers | One-at-a-time release with compact line integration | Stack variation, sticking, format range and discharge pitch |
| Pick-and-place | Transfer parts from a feeder, tray, conveyor or bin | Flexible orientation, multiple destinations and precise placement | Vision, gripper, cycle balance, recovery and safeguarding |
The system must manage bulk supply, orientation, accepted output, queue pressure, machine demand, rejects and operator intervention.
Hold enough product for the agreed autonomy without creating damaging bulk pressure.
Replenish the orientation device at the right product depth.
Use mechanical or vision-guided principles to establish the required pose.
Confirm selected features and reject unsuitable presentations.
Create controlled accumulation between feeder and process.
Singulate one part or a defined group at the machine interface.
Selection starts with the component, not the rate headline. Geometry, stability, tangling, surface sensitivity, format variety, required orientation and downstream cycle are assessed together, then the most credible principle is trialled.
Yes. A system might use a hopper to replenish a bowl, a linear track to buffer output, vision to verify orientation and an escapement to release one part to the process.
It is the accepted output delivered over an agreed test period under defined conditions, including normal recirculation and rejection—not a brief instantaneous peak.
They can be. The project scope may include sensors, drive control, PLC or machine interfaces, HMI, guarding, interlocks and diagnostic logic.
These system pages cover commercial searches that were not previously represented as dedicated services.
Send a part photo or drawing, the target rate and the required orientation. We will recommend the most suitable starting point.
